Description

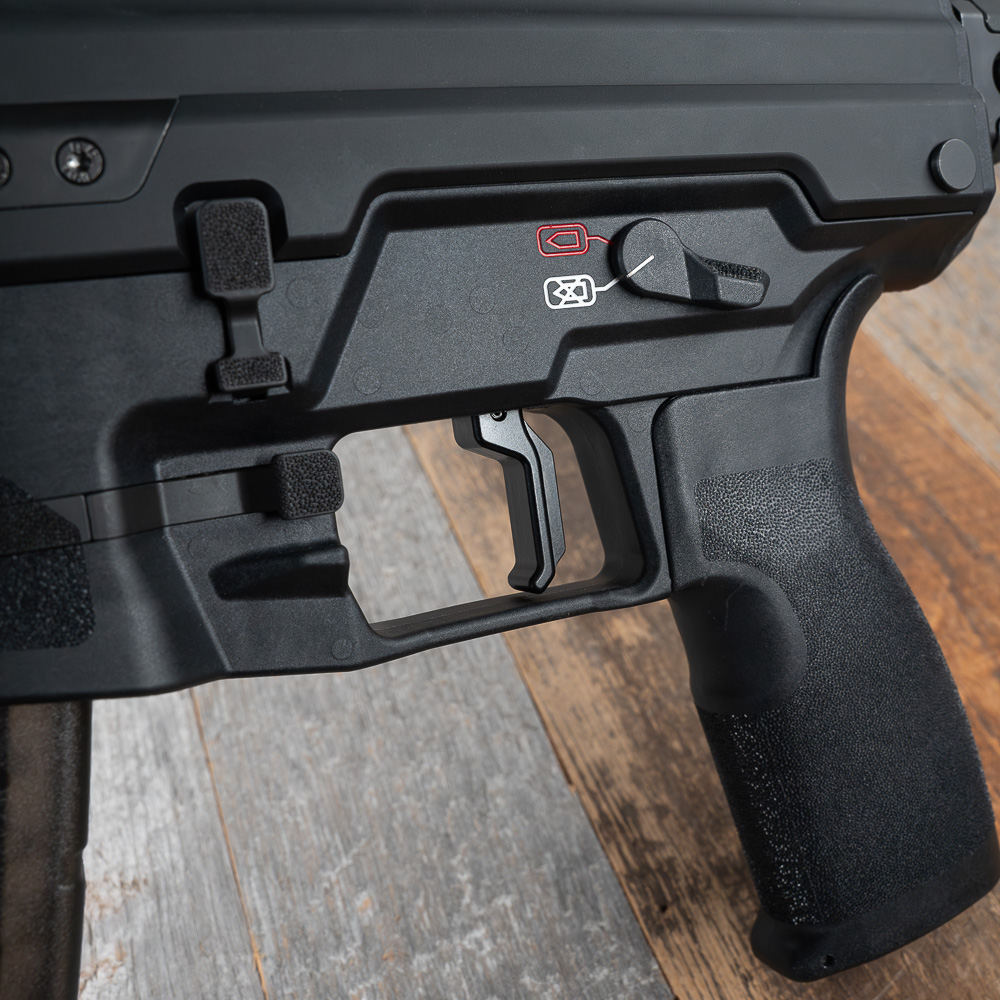

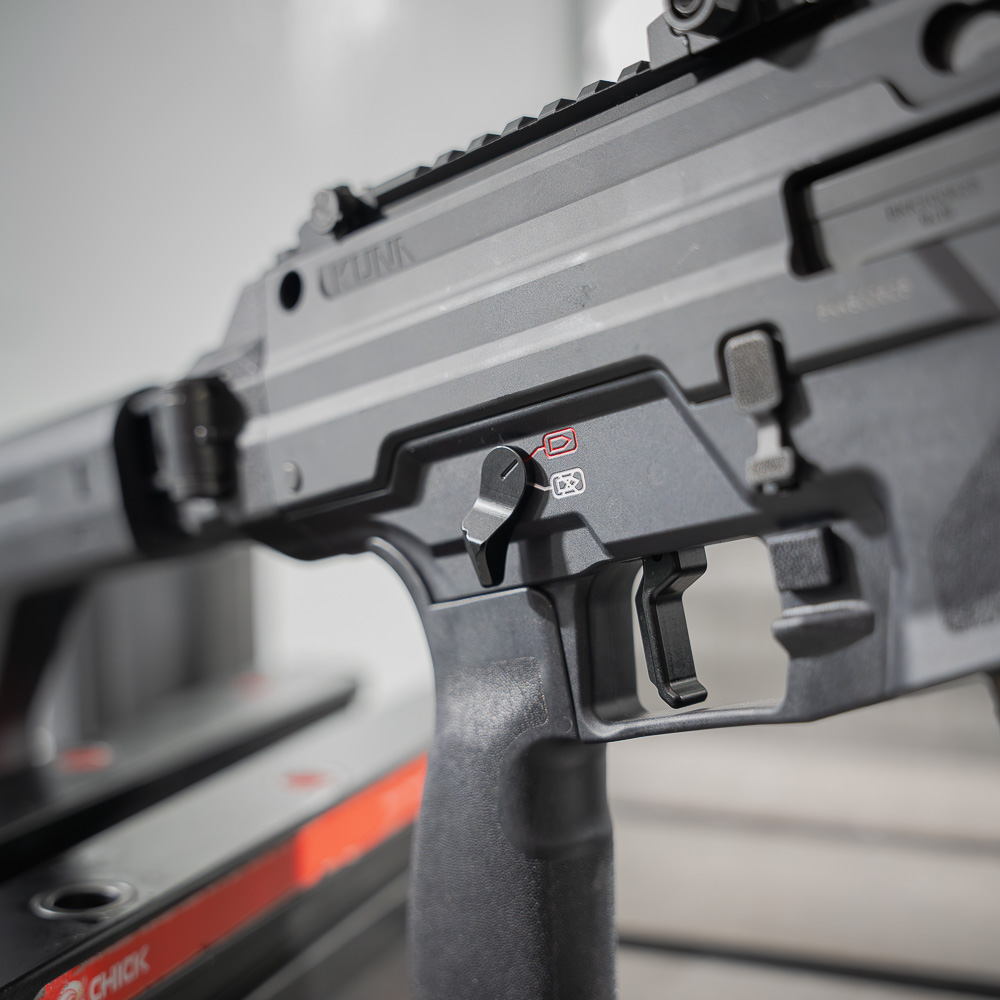

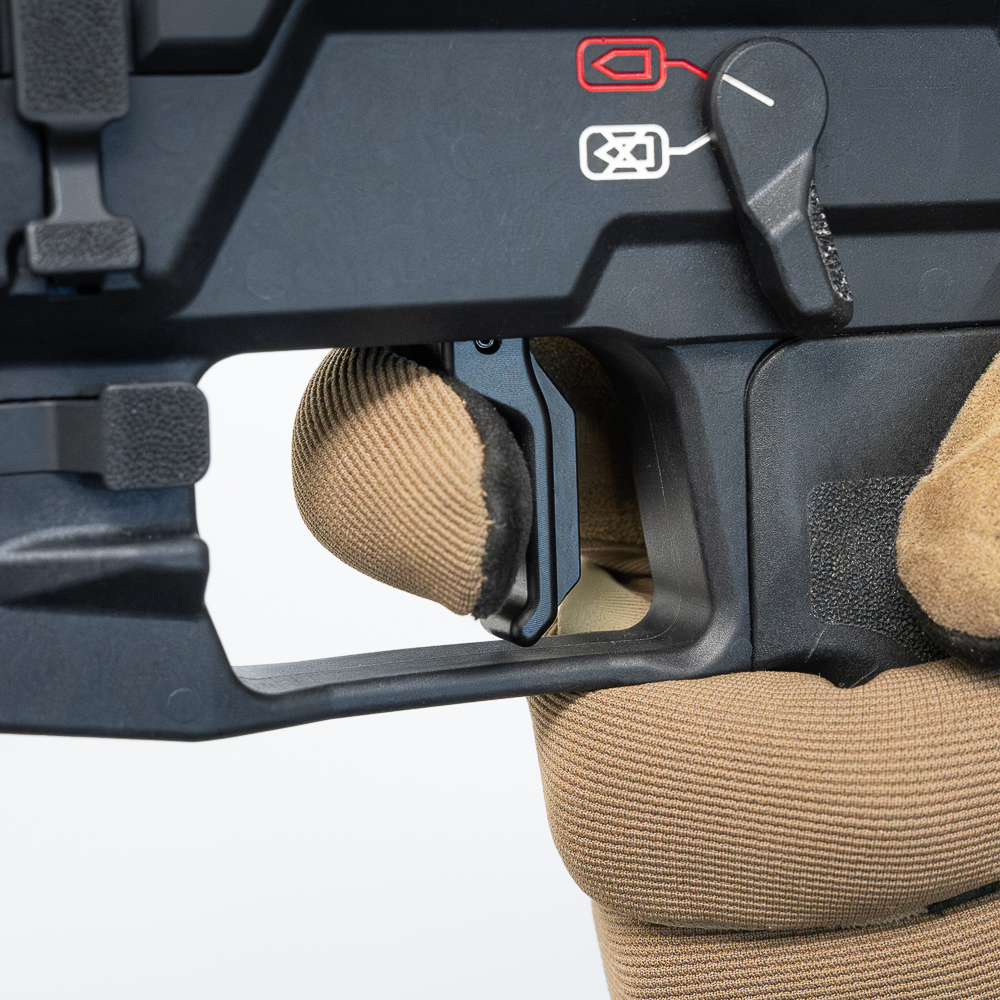

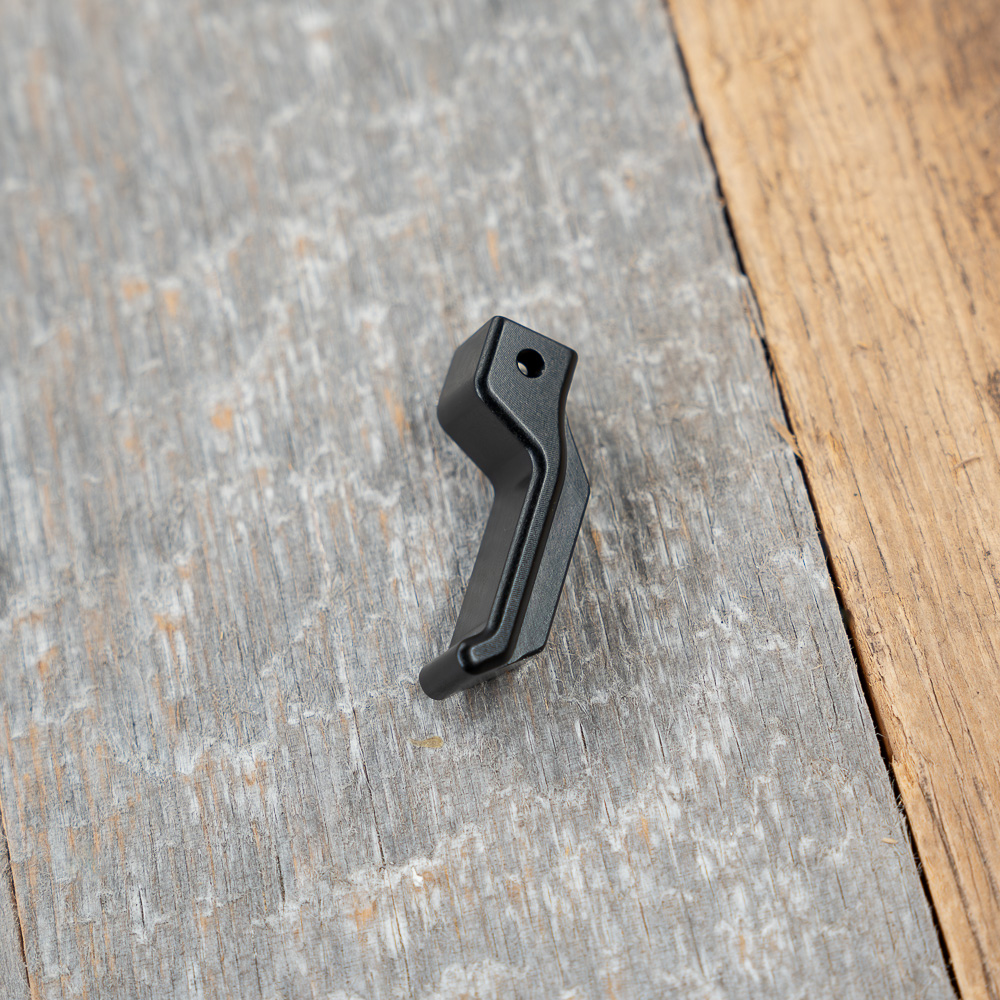

Our trigger for the Springfield Kuna is offset towards the rear by .1600″ or about 4mm when compared to the factory trigger. This brings the Length of Pull (LOP) in line with that of standard AR/M4 pattern receivers (and byproduct, due to trigger pack geometry, it also slightly reduces pull weight by 3-5% or about 0.2lbs on factory springs). The Kuna has a good trigger out of the box, but if you have been swapping out grips and something still feels ever so slightly off about the fire control group as compared to your typical AR, we highly recommend giving our trigger a shot. Our Kuna triggers are precision machined from billet aluminum available in black or red. Made in the USA, this part counts towards 922R compliance. Trigger includes a new roll pin for seamless installation.
- Fits all Springfield Kuna (HS produkt)
- Face is Offset Rear by .160″/4mm (Makes LOP Similar to AR15)
- Reduces Trigger Pull Weight by 3-5%
- Made in USA, 922R compliant
- Drop In Replacement, Includes Roll Pin
- Machined Aluminum 6061-T6
- Available in Black or Red
Gunsmith Installation Recommended for All Parts.










thewong1 (verified owner) –
The red trigger looks good, and the length of pull is slightly reduced. The reset also feels shorter, though that’s likely due to the updated trigger angle.
One word of caution: when using a hammer to tap out the pin, be careful not to apply too much downward pressure on the assembly—doing so can cause the trigger pins to pop out.
Try to first set the pin into the trigger, then using a padded pair of channel lock plier or vice grip pliers to press the pin in place.
Zeph (verified owner) –
The trigger pull length feels really good. Be sure to use a roll pin punch to install the trigger and it will seat into the fire control group perfectly. However, the fact that it is a few millimeters behind the stock trigger makes seating the fire control group back into the lower very, very tight. This in turn makes that wonderfully designed pin at the front of the assembly that stops hammer travel to fall out frequently while trying to reseat the whole thing. I ended up going back to the stock trigger just to make field stripping less maddening.
Kenneth Jiam (verified owner) –
Making the length of pull more similar with an AR-15 is a nice touch. I wouldn’t say it’s the most significant upgrade you could do with the Kuna, but it’s fairly cheap so it’s a “might as well” kind of thing. Plus it looks kind of cool… 🙂
For those people talking about the other pins falling out while getting the trigger installed, a little bit of blue painter’s tape during that process can really save you guys a lot of headache, lol.
Ken A (verified owner) –
I like this trigger and I wish I had read the comment above about using some blue painters tape before I tried to swap the triggers. I watched the video provided multiple times and it doesn’t come close to portraying my experience with the trigger roll pin and fitting the trigger group back in. This was not an average DIYer task for me.
It was difficult to get the trigger roll pin out with a roll pin punch. Once it was out a little ways, it stopped and I couldn’t get it out any further no matter how hard I hammered the punch. I finally pulled it with pliers and it came out easily. (Live and learn.) With all my pounding on the roll pin, the trigger group pins came loose. I had to go to a gunsmith to get the trigger group back together correctly.
This trigger sits a little further back and doesn’t clear the back of the trigger hole. This made it very difficult (impossible for me) to get the trigger group back in. I think the gunsmith had to dismantle the bolt catch group to slide it forward enough for the trigger to clear and then re-assemble the bolt catch group. He pointed out that I could take a Dremel and extend the hole a little further back, but I didn’t want to do that.
